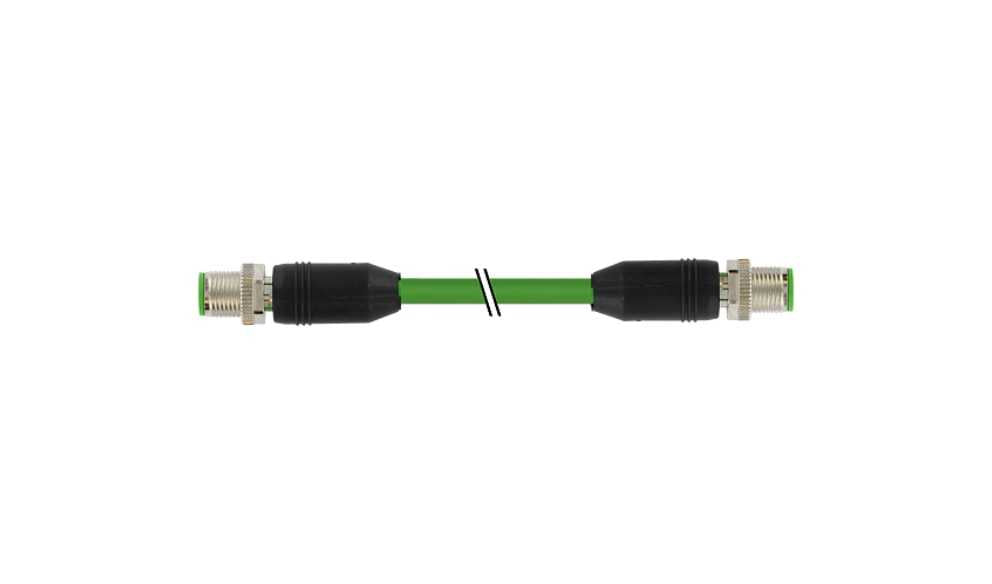

Murrelektronik Sensor & Actuator Cables 7000-44511-7960500

Murrelektronik Sensor & Actuator Cables 7000-44511-7960500

7000-44511-7960500 Description

Murrelektronik, M12 St. 0 / M12 St. 0 D-cod. shielded PUR 1x4xAWG22 shielded gn UL/CSA+schleppk. 5m

✅ In stock 15+ Available

AED 351.59
AED 351.59
Sale Sold out

Free shipping on orders over AED 500

Series
Cross Sectional Area
Number of Cores

💡 Need technical consultation or bulk pricing?

Speak with Expert

Genuine Product

2 Year Warranty

Fast Delivery

Specifications








  • Brand: Murrelektronik Limited

  • Series: D-Coded

  • Cross Sectional Area: 0.34 mm²

  • Number of Cores: 4

  • Sheath Colour: Green

  • Sheath Material: PUR

  • Length: 5m

  • Connector 1 Number of Contacts: 4

  • Connector 1 Orientation: Straight

  • Connector 1: M12

  • Connector 1 Gender: Female

  • Connector 2 Orientation: Straight

  • Connector 2 Number of Contacts: 4

  • Connector 2: M12

  • Connector 2 Housing Gender: Male

  • Connector 2 Gender: Female

  • Coding: D

  • Shielded/Unshielded: Shielded

  • Current Rating: 4 A

  • Voltage Rating: 30 V dc, 60 V dc

  • IP Rating: IP65, IP66K, IP67

  • Oil Resistant: Yes

  • Maximum Operating Temperature: +70 (Mobile) °C, +80 (Fixed) °C, +85°C

  • Fire Behaviour: Flame Retardant

  • Minimum Bend Radius: 33.5 (Fixed) mm, 80.4 (Moving) mm

  • Outer Diameter: 6.7mm

  • Conductor Resistance: 55 O/km

  • American Wire Gauge: 22 AWG

  • Operating Temperature Range: -25 ? +85 °C, -30 ? +70 (Mobile) °C, -40 ? +80 (Fixed) °C

  • Connector 1 Housing Gender: Male

  • Minimum Operating Temperature: -25 °C, -30 (Mobile) °C, -40 (Fixed) °C
