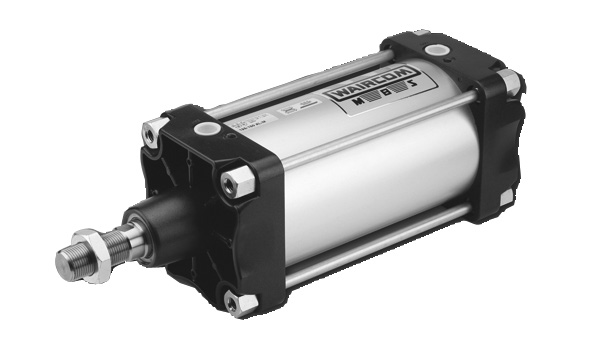

Waircom 320/25 XL/N - Series XL Large Bore ISO 15552 Non-Magnetic Cylinder

The Waircom 320/25 XL/N is a large-bore, heavy industrial double acting cylinder designed for high-force linear applications under the ISO 15552 directive. It outputs massive mechanical force via a 320 mm bore and executes a precise 25 mm stroke. The premium composition relies on an Anodized aluminium alloy (20 µm) barrel, a heavy-duty C45 chromium-plated steel piston rod with M48x2 thread pitching, and massive G1 fluid connection ports. It comes natively equipped with a non-magnetic piston setup and adjustable (included as standard) cushioning to mitigate high-inertia impacts.
