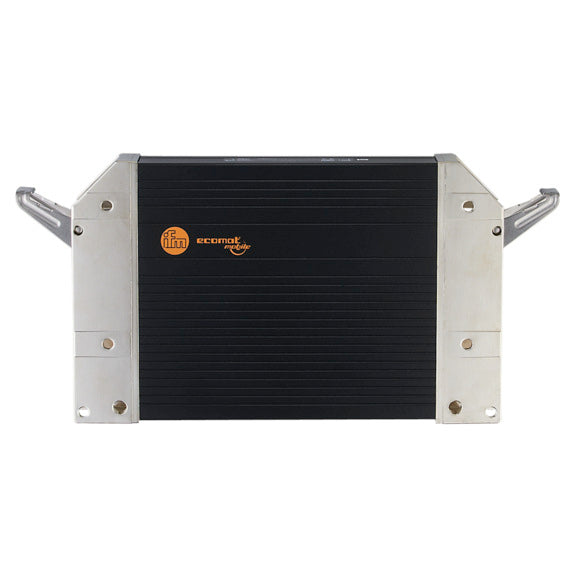

IFM CR0232 - Programmable Controller (Mobile Machines), 80 I/O, 4x CAN

SKUCR0232BrandIFM

AED 12,936.82

~~AED 14,374.24~~ AED 12,936.82

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM CR0232 Programmable Controller (Mobile Machines) — phase-out ExtendedController for mobile machines (successor CR721S), 80 I/O, 4x CAN, CODESYS 2.3. Programmable mobile-machine controller, 80 configurable I/O (32 DI / 32 AI / 32 freq / 48 DO / 4 H-bridge), 4x CAN, CODESYS 2.3, 10...32 V DC, phase-out (successor CR721S).

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: CR0232

Also known as: IFM CR0232 plc / controller.

CR0232 Applications

The IFM CR0232 is a freely programmable controller used for complex control functions in vehicles and mobile machines. It is suited for off-highway, construction and agricultural equipment needing a large channel count and rugged CAN-based control. It offers 80 multifunctional configurable I/O (digital, analogue, frequency, PWM and H-bridge outputs), four high-performance CAN interfaces, a high protection rating for mobile use, and free programming to IEC 61131-3 with CODESYS 2.3. Note: CR0232 is a phase-out article (do not use for new projects); ifm lists CR721S as its successor.

CR0232 Specifications

Brand	IFM	Product Type	Programmable controller for mobile machines
IFM Type Code	R360/ExtendedController/32	Availability	Phase-out article (successor: CR721S)
Total I/O	80	Inputs	32 digital, 32 analogue (0-20 mA / 0-32 V), 32 frequency
Outputs	48 digital (32 PWM / 32 PWM-I), 4 H-bridge	Programming	IEC 61131-3, CODESYS 2.3
CAN Interfaces	4	Other Interfaces	1 x RS232, 1 x USB
Operating Voltage	10...32 V DC	Mounting	Screw mounting
Dimensions	153 x 277 x 43 mm	Weight	1931.9 g
Note	Do not use for new projects

CR0232 – Frequently Asked Questions (FAQ)

What is the IFM CR0232?

IFM CR0232 is a Programmable Controller (Mobile Machines) -- phase-out ExtendedController for mobile machines (successor CR721S), 80 I/O, 4x CAN, CODESYS 2.3.

What is the IFM CR0232 used for?

The IFM CR0232 is a freely programmable controller used for complex control functions in vehicles and mobile machines.

What are the key specifications of the IFM CR0232?

IFM CR0232 -- Programmable mobile-machine controller, 80 configurable I/O (32 DI / 32 AI / 32 freq / 48 DO / 4 H-bridge), 4x CAN, CODESYS 2.3, 10...32 V DC, phase-out (successor CR721S).

What output or connection does the IFM CR0232 have?

The IFM CR0232 has -- Output: 48 digital (32 PWM / 32 PWM-I), 4 H-bridge.

Is the IFM CR0232 available and where does it ship from?

Yes -- the IFM CR0232 is available to order and ships from the UAE with GCC-wide delivery.
